CAN Box

CAN Box enables power supply to multiple consumers and can also be used to control functions.

CAN Box 8FR6

The patented MicroP is the smallest CAN controller with the highest integration density. On the footprint of two micro 280 relays and a drag-and-drop configuration tool, CAN bus-capable power distribution systems can easily be built.

Key Features

R

Eight fuse and relay outputs with up to 15 A

R

Six high-side outputs with up to 2 A

R

Eight analogue inputs

R

Four digital or frequency inputs with switchable pull-up

R

Two CAN bus interfaces

Applications

R

Power supply of multiple consumers.

R

Transmission of analogue signals on CAN bus.

R

CAN-to-CAN gateway functions.

R

Various diagnostic options (e.g. defective fuses, relay status, current measurement on all outputs, temperature measurements, and more).

R

Load reduction of other control units by taking over the control of most consumers.

R

Retrofitting of existing systems.

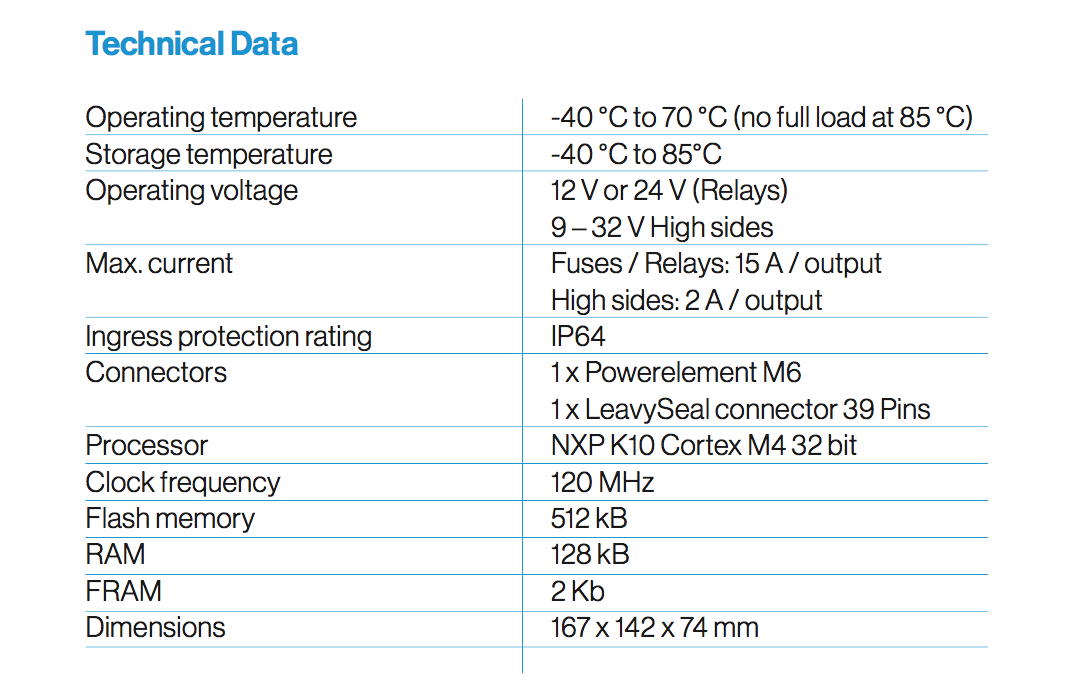

Technical DataBike
